Tags

To generate a service account token please refer to the authentication chapter.

jq can be used to easily format and parse the outputs.

Tags

Tag.v1

Get all device tags

curl

curl -sS -kX GET --header 'Accept: application/json' -b access_token=`cat token.tok` 'https://192.0.2.100/api/resources/tag/v1/DeviceTag/all' | jq '.result.value.key | .label + " " + .value'

Result:

<snippet>

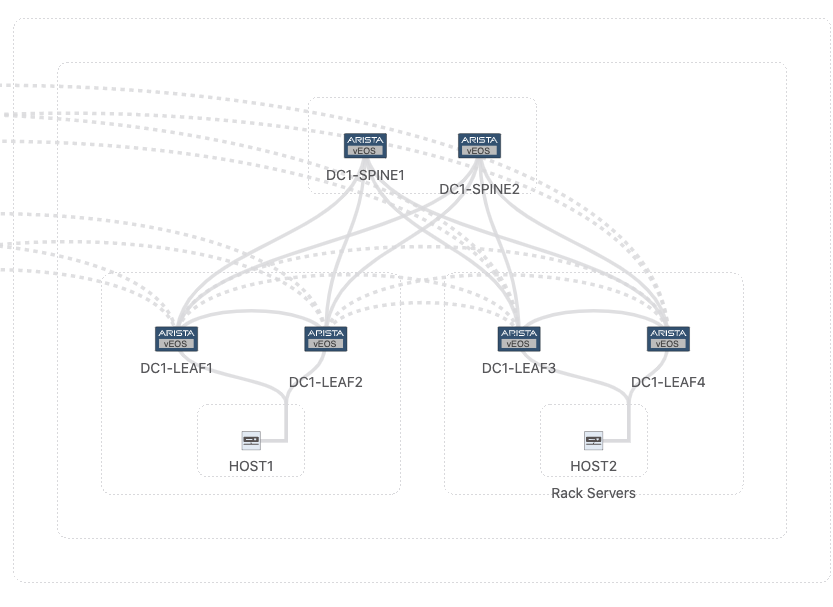

topology_datacenter Shannon"
"topology_datacenter vDC1R"
"topology_hint_pod Vantage"
"topology_hint_pod vPod1R"
"topology_hint_pod vPod3R"
"topology_hint_pod tac-ire-pod1"
"topology_hint_pod tac-ire-pod3"
"topology_hint_pod tac-ire-pod2"
"topology_hint_rack Rack17"
"topology_hint_rack Rack15"
"topology_hint_rack Rack27"
"topology_hint_rack vRack2R"
"topology_hint_rack vRack1R"
"topology_hint_rack vRack4R"
"topology_hint_rack vRack3R"
"topology_hint_type edge"
"topology_hint_type leaf"
"topology_hint_type spine"
"topology_hint_type server"
"topology_hint_type endpoint"
"topology_hint_type management"
"topology_hint_datacenter vDC1R"
"topology_hint_datacenter Shannon"
<snippet>

cvprac

def get_all_device_tags(client):
    tag_url = '/api/resources/tag/v1/DeviceTag/all'
    tag_data = client.get(tag_url)
    tags = []
    for tag in tag_data['data']:
        tags.append({tag['result']['value']['key']['label']:tag['result']['value']['key']['value']})
    return tags

for tag in get_all_device_tags(clnt):
    print (tag)

python requests

def get_all_device_tags():
    tag_url = '/api/resources/tag/v1/DeviceTag/all'
    url = cvp_url + tag_url
    head = {'Authorization': 'Bearer {}'.format(token)}
    response = requests.get(url, headers=head, verify=False)
    tag_data = json_decoder(response.text)
    tags = []
    for tag in tag_data:
        tags.append({tag['result']['value']['key']['label']:tag['result']['value']['key']['value']})
    return tags

pp(get_all_device_tags())

Get all assigned interface tags

curl

 curl -sS -kX GET --header 'Accept: application/json' -b access_token=`cat token.tok` 'https://192.0.2.100/api/resources/tag/v1/InterfaceTagAssignmentConfig/all'

cvprac

def get_all_interface_tags(client):
    tag_url = '/api/resources/tag/v1/InterfaceTagAssignmentConfig/all'
    tags = client.get(tag_url)
    return tags['data']

print(get_all_interface_tags(clnt))

python requests

def get_all_interface_tags():
    tag_url = '/api/resources/tag/v1/InterfaceTagAssignmentConfig/all'
    url = cvp_url + tag_url
    head = {'Authorization': 'Bearer {}'.format(token)}
    response = requests.get(url, headers=head, verify=False)
    tags = json_decoder(response.text)
    return tags

pp(get_all_interface_tags())

Get all tags for a device

curl

curl -sS -kX POST --header 'Accept: application/json' -b access_token=`cat token.tok` -d '{"partialEqFilter": [{"key":{"deviceId": "JPE14070534"}}]}' 'https://192.0.2.100/api/resources/tag/v1/InterfaceTagAssignmentConfig/all'

Result:

{
   "result":{
      "value":{
         "key":{
            "label":"speed",
            "value":"speed1Gbps",
            "deviceId":"JPE14070534",
            "interfaceId":"Ethernet1"
         }
      },
      "time":"2021-03-30T18:33:18.639842067Z",
      "type":"INITIAL"
   }
}
{
   "result":{
      "value":{
         "key":{
            "label":"name",
            "value":"Ethernet1",
            "deviceId":"JPE14070534",
            "interfaceId":"Ethernet1"
         }
      },
      "time":"2021-03-27T00:38:41.945746826Z",
      "type":"INITIAL"
   }
}
{
   "result":{
      "value":{
         "key":{
            "label":"speed",
            "value":"speed10Gbps",
            "deviceId":"JPE14070534",
            "interfaceId":"Ethernet2"
         }
      },
      "time":"2021-03-27T00:38:41.906241108Z",
      "type":"INITIAL"
   }
}
{
   "result":{
      "value":{
         "key":{
            "label":"name",
            "value":"Ethernet2",
            "deviceId":"JPE14070534",
            "interfaceId":"Ethernet2"
         }
      },
      "time":"2021-03-27T00:38:41.906241108Z",
      "type":"INITIAL"
   }
}

Using jq to only print the list of 40Gbps interfaces:

curl -sS -kX POST --header 'Accept: application/json' -b access_token=`cat token.tok` -d '{"partialEqFilter": [{"key":{"deviceId": "JPE14070534", "value":"speed40Gbps" }}]}' 'https://192.0.2.100/api/resources/tag/v1/InterfaceTagAssignmentConfig/all' | jq '.result.value.key.interfaceId'
"Ethernet97"
"Ethernet98"
"Ethernet99"
"Ethernet100"
"Ethernet101"
"Ethernet102"
"Ethernet103"
"Ethernet104"

cvprac

def filter_interface_tag(client, dId=None, ifId=None, label=None, value=None):
    tag_url = '/api/resources/tag/v1/InterfaceTagAssignmentConfig/all'
    payload = {
                "partialEqFilter": [
                    {"key": {"deviceId": dId, "interfaceId": ifId, "label": label, "value": value}}
                ]
            }
    response = client.post(tag_url, data=payload)
    return response

print(filter_interface_tag(clnt, dId="JPE14070534", value="speed40Gbps"))

python requests

def filter_interface_tag(dId=None, ifId=None, label=None, value=None):
    tag_url = '/api/resources/tag/v1/InterfaceTagAssignmentConfig/all'
    payload = {
                "partialEqFilter": [
                    {"key": {"deviceId": dId, "interfaceId": ifId, "label": label, "value": value}}
                ]
            }
    url = cvp_url + tag_url
    head = {'Authorization': 'Bearer {}'.format(token)}
    response = requests.post(url, headers=head, data=json.dumps(payload), verify=False)
    return response.text

print(filter_interface_tag(dId="JPE14070534", value="speed40Gbps"))

Get all tags for an interface of a device

curl

curl -sS -kX POST --header 'Accept: application/json' -b access_token=`cat token.tok` -d '{"partialEqFilter": [{"key":{"deviceId": "JPE14070534", "interfaceId": "Ethernet1"}}]}' 'https://192.0.2.100/api/resources/tag/v1/InterfaceTagAssignmentConfig/all'

Result:

{
  "result": {
    "value": {
      "key": {
        "label": "name",
        "value": "Ethernet1",
        "deviceId": "JPE14070534",
        "interfaceId": "Ethernet1"
      }
    },
    "time": "2021-03-27T00:38:41.945746826Z",
    "type": "INITIAL"
  }
}
{
  "result": {
    "value": {
      "key": {
        "label": "speed",
        "value": "speed1Gbps",
        "deviceId": "JPE14070534",
        "interfaceId": "Ethernet1"
      }
    },
    "time": "2021-03-30T18:33:18.639842067Z",
    "type": "INITIAL"
  }
}

cvprac

print(filter_interface_tag(clnt, dId="JPE14070534", ifId="Ethernet1"))

python requests

print(filter_interface_tag(dId="JPE14070534", ifId="Ethernet1"))

Get all interfaces that have a specific tag assigned

curl

curl -sS -kX POST --header 'Accept: application/json' -b access_token=`cat token.tok` -d '{"partialEqFilter": [{"key":{"deviceId": "JPE14070534", "label":"lldp_hostname" }}]}' 'https://192.0.2.100/api/resources/tag/v1/InterfaceTagAssignmentConfig/all' | jq '.result.value.key.interfaceId'

"Ethernet2"

cvprac

print(filter_interface_tag(clnt, dId="JPE14070534", label="lldp_hostname"))

python requests

print(filter_interface_tag(dId="JPE14070534", label="lldp_hostname"))

Get all interfaces that have a tag with a specific value on a device

curl

curl -sS -kX POST --header 'Accept: application/json' -b access_token=`cat token.tok` -d '{"partialEqFilter": [{"key":{"deviceId": "JPE14070534", "value":"speed40Gbps" }}]}' 'https://192.0.2.100/api/resources/tag/v1/InterfaceTagAssignmentConfig/all'

Result:

      "time":"2021-03-27T00:38:41.886763089Z",
      "type":"INITIAL"
   }
}{
   "result":{
      "value":{
         "key":{
            "label":"speed",
            "value":"speed40Gbps",
            "deviceId":"JPE14070534",
            "interfaceId":"Ethernet101"
         }
      },
      "time":"2021-03-27T00:38:41.901936362Z",
      "type":"INITIAL"
   }
}{
   "result":{
      "value":{
         "key":{
            "label":"speed",
            "value":"speed40Gbps",
            "deviceId":"JPE14070534",
            "interfaceId":"Ethernet102"
         }
      },
      "time":"2021-03-27T00:38:41.935420476Z",
      "type":"INITIAL"
   }
}{
   "result":{
      "value":{
         "key":{
            "label":"speed",
            "value":"speed40Gbps",
            "deviceId":"JPE14070534",
            "interfaceId":"Ethernet103"
         }
      },
      "time":"2021-03-27T00:38:41.970652360Z",
      "type":"INITIAL"
   }
}{
   "result":{
      "value":{
         "key":{
            "label":"speed",
            "value":"speed40Gbps",
            "deviceId":"JPE14070534",
            "interfaceId":"Ethernet104"
         }
      },
      "time":"2021-03-27T00:38:41.968041519Z",
      "type":"INITIAL"
   }
}

cvprac

print(filter_interface_tag(clnt, dId="JPE14070534", value="speed40Gbps"))

python requests

print(filter_interface_tag(dId="JPE14070534", value="speed40Gbps"))

Create interface tag

curl

curl -sS -kX POST --header 'Accept: application/json' -b access_token=`cat token.tok` 'https://192.0.2.100/api/resources/tag/v1/InterfaceTagConfig' -d '{"key":{"label":"lldp_chassis","value":"50:08:00:0d:00:08"}}'

Result:

{"value":{"key":{"label":"lldp_chassis", "value":"50:08:00:0d:00:08"}}, "time":"2021-04-02T21:58:29.100209908Z"}%

cvprac

def create_itag(client, label, value):
    tag_url = '/api/resources/tag/v1/InterfaceTagConfig'
    payload = {"key":{"label":label,"value":value}}
    response = client.post(tag_url, data=payload)
    return response

create_itag(clnt, "lldp_chassis", "50:08:00:0d:00:38")

python requests

def create_itag(label, value):
    tag_url = '/api/resources/tag/v1/InterfaceTagConfig'
    payload = {"key":{"label":label,"value":value}}
    url = cvp_url + tag_url
    head = {'Authorization': 'Bearer {}'.format(token)}
    response = requests.post(url, headers=head, data=json.dumps(payload), verify=False)
    return response

create_itag("lldp_chassis", "50:08:00:0d:00:18")

Assign interface tag

curl

curl -sS -kX POST --header 'Accept: application/json' -b access_token=`cat token.tok` 'https://192.0.2.100/api/resources/tag/v1/InterfaceTagAssignmentConfig' -d '{"key":{"label":"lldp_chassis", "value":"50:08:00:0d:00:08", "deviceId":"JPE14070534", "interfaceId": "Ethernet2"}}'

Result:

{"value":{"key":{"label":"lldp_chassis", "value":"50:08:00:0d:00:08", "deviceId":"JPE14070534", "interfaceId":"Ethernet2"}}, "time":"2021-04-02T22:00:29.492449919Z"}%

cvprac

def assign_itag(client, dId, ifId, label, value):
    tag_url = '/api/resources/tag/v1/InterfaceTagAssignmentConfig'
    payload = {"key":{"label":label, "value":value, "deviceId": dId, "interfaceId": ifId}}
    response = client.post(tag_url, data=payload)
    return response

assign_itag(clnt, "JPE14070534", "Ethernet4", "lldp_chassis", "50:08:00:0d:00:38")

python requests

def assign_itag(dId, ifId, label, value):
    tag_url = '/api/resources/tag/v1/InterfaceTagAssignmentConfig'
    payload = {"key":{"label":label, "value":value, "deviceId": dId, "interfaceId": ifId}}
    url = cvp_url + tag_url
    head = {'Authorization': 'Bearer {}'.format(token)}
    response = requests.post(url, headers=head, data=json.dumps(payload), verify=False)
    return response

assign_itag("JPE14070534", "Ethernet3", "lldp_chassis", "50:08:00:0d:00:48")

Create device tag

curl

curl -sS -kX POST --header 'Accept: application/json' -b access_token=`cat token.tok` 'https://192.0.2.100/api/resources/tag/v1/DeviceTagConfig' -d '{"key":{"label":"topology_hint_pod", "value":"ire-pod10"}}'

Result:

{"value":{"key":{"label":"topology_hint_pod", "value":"ire-pod10"}}, "time":"2021-04-02T21:55:03.147265316Z"}%

cvprac

def create_dtag(client, label, value):
    tag_url = '/api/resources/tag/v1/DeviceTagConfig'
    payload = {"key":{"label":label,"value":value}}
    response = client.post(tag_url, data=payload)
    return response

create_dtag(clnt, "topology_hint_pod", "ire-pod11")

python requests

def create_dtag(label, value):
    tag_url = '/api/resources/tag/v1/DeviceTagConfig'
    payload = {"key":{"label":label, "value":value}}
    url = cvp_url + tag_url
    head = {'Authorization': 'Bearer {}'.format(token)}
    response = requests.post(url, headers=head, data=json.dumps(payload), verify=False)
    return response

create_dtag("topology_hint_pod", "ire-pod11")

Assign device tag

curl

curl -sS -kX POST --header 'Accept: application/json' -b access_token=`cat token.tok` 'https://192.0.2.100/api/resources/tag/v1/DeviceTagAssignmentConfig' -d '{"key":{"label":"topology_hint_pod", "value":"ire-pod10","deviceId":"JPE14070534"}}'

Result:

{"value":{"key":{"label":"topology_hint_pod", "value":"ire-pod10", "deviceId":"JPE14070534"}}, "time":"2021-04-02T21:56:24.575813791Z"}%

cvprac

def assign_dtag(client, dId, label, value):
    tag_url = '/api/resources/tag/v1/DeviceTagAssignmentConfig'
    payload = {"key":{"label":label, "value":value, "deviceId": dId}}
    response = client.post(tag_url, data=payload)
    return response

assign_dtag(clnt, "JPE14070534", "topology_hint_pod", "ire-pod11" )

python requests

def assign_dtag(dId, label, value):
    tag_url = '/api/resources/tag/v1/DeviceTagAssignmentConfig'
    payload = {"key":{"label":label, "value":value, "deviceId": dId}}
    url = cvp_url + tag_url
    head = {'Authorization': 'Bearer {}'.format(token)}
    response = requests.post(url, headers=head, data=json.dumps(payload), verify=False)
    return response

assign_dtag("JPE14070534", "topology_hint_pod", "ire-pod11")

Tag.v2

The Tag.v2 API is a workspace-aware resource APIs, meaning all changes must be done within a workspace. Changes only get commited upon submitting the workspace. The following examples will walk through device and interface tag creation and assignment workflow.

Get all tags

curl

curl -sS -kX POST --header 'Accept: application/json' -b access_token=`cat token.tok` 'https://192.0.2.100/api/resources/tag/v2/Tag/all' -d '{"partialEqFilter": [{"key":{"workspace_id":""}}]}'

Result:

{"result":{"value":{"key":{"workspaceId":"","elementType":"ELEMENT_TYPE_DEVICE","label":"bgp","value":"disabled"}},"time":"2021-08-31T12:13:02.196521931Z","type":"INITIAL"}}
{"result":{"value":{"key":{"workspaceId":"","elementType":"ELEMENT_TYPE_DEVICE","label":"bgp","value":"enabled"}},"time":"2021-08-14T07:26:29.341574116Z","type":"INITIAL"}}
{"result":{"value":{"key":{"workspaceId":"","elementType":"ELEMENT_TYPE_DEVICE","label":"eos","value":"4.23.3M"}},"time":"2021-07-28T02:59:00.766193431Z","type":"INITIAL"}}
{"result":{"value":{"key":{"workspaceId":"","elementType":"ELEMENT_TYPE_DEVICE","label":"eos","value":"4.23.5M"}},"time":"2021-08-14T07:26:27.413625640Z","type":"INITIAL"}}
{"result":{"value":{"key":{"workspaceId":"","elementType":"ELEMENT_TYPE_DEVICE","label":"eos","value":"4.25.0F"}},"time":"2021-09-01T17:15:37.885129346Z","type":"INITIAL"}}
{"result":{"value":{"key":{"workspaceId":"","elementType":"ELEMENT_TYPE_DEVICE","label":"eos","value":"4.21.6F"}},"time":"2021-07-29T13:42:04.760294195Z","type":"INITIAL"}}
{"result":{"value":{"key":{"workspaceId":"","elementType":"ELEMENT_TYPE_DEVICE","label":"eos","value":"4.23.4M"}},"time":"2021-08-02T09:43:47.909750932Z","type":"INITIAL"}}
{"result":{"value":{"key":{"workspaceId":"","elementType":"ELEMENT_TYPE_DEVICE","label":"eos","value":"4.24.2F"}},"time":"2021-07-16T12:58:30.560542937Z","type":"INITIAL"}}
{"result":{"value":{"key":{"workspaceId":"","elementType":"ELEMENT_TYPE_DEVICE","label":"eos","value":"4.23.4.3M"}},"time":"2021-08-30T10:37:35.606467220Z","type":"INITIAL"}}
{"result":{"value":{"key":{"workspaceId":"","elementType":"ELEMENT_TYPE_DEVICE","label":"eos","value":"4.25.3.1M"}},"time":"2021-08-07T02:01:36.654997065Z","type":"INITIAL"}}
{"result":{"value":{"key":{"workspaceId":"","elementType":"ELEMENT_TYPE_INTERFACE","label":"name","value":"Vlan7"}},"time":"2021-06-25T18:22:54.280867585Z","type":"INITIAL"}}
{"result":{"value":{"key":{"workspaceId":"","elementType":"ELEMENT_TYPE_INTERFACE","label":"name","value":"Vlan100"}},"time":"2021-07-28T02:59:01.286803486Z","type":"INITIAL"}}
{"result":{"value":{"key":{"workspaceId":"","elementType":"ELEMENT_TYPE_INTERFACE","label":"name","value":"Vlan111"}},"time":"2021-08-30T17:00:00.078489504Z","type":"INITIAL"}}
{"result":{"value":{"key":{"workspaceId":"","elementType":"ELEMENT_TYPE_INTERFACE","label":"name","value":"Vlan78"}},"time":"2021-06-25T21:24:48.360777488Z","type":"INITIAL"}}
{"result":{"value":{"key":{"workspaceId":"","elementType":"ELEMENT_TYPE_INTERFACE","label":"name","value":"Vlan1"}},"time":"2021-09-01T16:22:31.232251875Z","type":"INITIAL"}}
{"result":{"value":{"key":{"workspaceId":"","elementType":"ELEMENT_TYPE_INTERFACE","label":"name","value":"Vlan55"}},"time":"2021-07-28T02:59:06.877353719Z","type":"INITIAL"}}
{"result":{"value":{"key":{"workspaceId":"","elementType":"ELEMENT_TYPE_INTERFACE","label":"name","value":"Vlan19"}},"time":"2021-09-01T17:15:38.668776675Z","type":"INITIAL"}}

Get all interface tags

curl

curl -sS -kX POST --header 'Accept: application/json' -b access_token=`cat token.tok` 'https://192.0.2.100/api/resources/tag/v2/Tag/all' -d '{"partialEqFilter": [{"key":{"elementType":"ELEMENT_TYPE_INTERFACE"}}]}'

Result:

{"result":{"value":{"key":{"workspaceId":"7de7c055-826c-4390-9dba-361afcb87536","elementType":"ELEMENT_TYPE_INTERFACE","label":"topology_role","value":"uplink"},"creatorType":"CREATOR_TYPE_USER"},"time":"2021-08-31T01:07:29.839897276Z","type":"INITIAL"}}
{"result":{"value":{"key":{"workspaceId":"a79b211e-83f5-430e-b1e2-b404c5aa1075","elementType":"ELEMENT_TYPE_INTERFACE","label":"interface_role","value":"downlinks"},"creatorType":"CREATOR_TYPE_USER"},"time":"2021-09-01T13:29:21.111654547Z","type":"INITIAL"}}

Get all device tags

curl

curl -sS -kX POST --header 'Accept: application/json' -b access_token=`cat token.tok` 'https://192.0.2.100/api/resources/tag/v2/Tag/all' -d '{"partialEqFilter": [{"key":{"elementType":"ELEMENT_TYPE_DEVICE"}}]}'

Result:

{"result":{"value":{"key":{"workspaceId":"testTag","elementType":"ELEMENT_TYPE_DEVICE","label":"topology_hint_pod","value":"ire-pod10"},"creatorType":"CREATOR_TYPE_USER"},"time":"2021-09-02T17:55:04.750886803Z","type":"INITIAL"}}
{"result":{"value":{"key":{"workspaceId":"12b90dee-b4a0-4882-b02b-3636ec7e3c4a","elementType":"ELEMENT_TYPE_DEVICE","label":"DC","value":"DC1"},"creatorType":"CREATOR_TYPE_USER"},"time":"2021-08-27T11:44:44.607449628Z","type":"INITIAL"}}
{"result":{"value":{"key":{"workspaceId":"12b90dee-b4a0-4882-b02b-3636ec7e3c4a","elementType":"ELEMENT_TYPE_DEVICE","label":"Role","value":"Leaf"},"creatorType":"CREATOR_TYPE_USER"},"time":"2021-08-27T11:44:31.028093497Z","type":"INITIAL"}}
{"result":{"value":{"key":{"workspaceId":"testTag","elementType":"ELEMENT_TYPE_DEVICE","label":"topology_hint_pod","value":"ire-pod111"},"creatorType":"CREATOR_TYPE_USER"},"time":"2021-09-02T17:55:14.319537170Z","type":"INITIAL"}}
{"result":{"value":{"key":{"workspaceId":"26ad35cb-23e5-459c-8ef2-f1adac43406c","elementType":"ELEMENT_TYPE_DEVICE","label":"DC","value":"DC@"},"creatorType":"CREATOR_TYPE_USER"},"time":"2021-07-29T13:21:27.229646717Z","type":"INITIAL"}}
{"result":{"value":{"key":{"workspaceId":"26ad35cb-23e5-459c-8ef2-f1adac43406c","elementType":"ELEMENT_TYPE_DEVICE","label":"DC","value":"DC1"},"creatorType":"CREATOR_TYPE_USER"},"time":"2021-07-29T13:22:34.405718999Z","type":"INITIAL"}}
{"result":{"value":{"key":{"workspaceId":"0fa846aa-7830-402e-a33f-0fa20ad1ccf7","elementType":"ELEMENT_TYPE_DEVICE","label":"Role","value":"Leaf"},"creatorType":"CREATOR_TYPE_USER"},"time":"2021-08-30T14:27:58.547155198Z","type":"INITIAL"}}

Create and assign device tag

curl

1. Create workspace

curl -sS -kX POST --header 'Accept: application/json' -b access_token=`cat token.tok` 'https://192.0.2.100/api/resources/workspace/v1/WorkspaceConfig' -d '{"key":{"workspace_id":"testTag"},"display_name":"testTag","description":"Test tag resource APIv2"}'

Result:

{"value":{"key":{"workspaceId":"testTag"},"displayName":"testTag","description":"Test tag resource APIv2"},"time":"2021-09-02T17:54:54.274Z"}%

2. Create the tag

curl -sS -kX POST --header 'Accept: application/json' -b access_token=`cat token.tok` 'https://192.0.2.100/api/resources/tag/v2/TagConfig' -d '{"key":{"workspace_id": "testTag", "element_type": "ELEMENT_TYPE_DEVICE", "label":"topology_hint_pod", "value":"avd-pod10"}}'

{"value":{"key":{"workspaceId":"testTag","elementType":"ELEMENT_TYPE_DEVICE","label":"topology_hint_pod","value":"avd-pod10"}},"time":"2021-09-02T17:55:14.319537170Z"}%

3. Assign the tag

curl -sS -kX POST --header 'Accept: application/json' -b access_token=`cat token.tok` 'https://192.0.2.100/api/resources/tag/v2/TagAssignmentConfig' -d  '{"key": {"workspaceId": "testTag", "elementType": "ELEMENT_TYPE_DEVICE", "label": "topology_hint_pod", "value": "avd-pod10", "deviceId": "4B0C688DBE67D1AC9572445DCDB552F9", }, "remove": false}'

4. Start the build

curl -sS -kX POST --header 'Accept: application/json' -b access_token=`cat token.tok` 'https://192.0.2.100/api/resources/workspace/v1/WorkspaceConfig' -d '{"key":{"workspace_id":"testTag"},"request":"REQUEST_START_BUILD","request_params":{"request_id":"b1"}}'

Result:

{"value":{"key":{"workspaceId":"testTag"},"request":"REQUEST_START_BUILD","requestParams":{"requestId":"b1"}},"time":"2021-09-02T17:57:18.683Z"}%

5. Verify the build status

curl -sS -kX GET --header 'Accept: application/json' -b access_token=`cat token.tok` 'https://192.0.2.100/api/resources/workspace/v1/WorkspaceBuild?key.workspaceId=testTag&key.buildId=b1'

Result:

{'value': {'key': {'workspaceId': 'testTag', 'buildId': 'b1'}, 'state': 'BUILD_STATE_SUCCESS', 'buildResults': {'values': {}}}, 'time': '2021-09-02T17:59:24.116Z'}

6. Submit the workspace

curl -sS -kX POST --header 'Accept: application/json' -b access_token=`cat token.tok` 'https://192.0.2.100/api/resources/workspace/v1/WorkspaceConfig' -d '{"key":{"workspace_id":"testTag"},"request":"REQUEST_SUBMIT","request_params":{"request_id":"s1"}}'

Result:

{"value":{"key":{"workspaceId":"testTag"},"request":"REQUEST_SUBMIT","requestParams":{"requestId":"s1"}},"time":"2021-09-02T18:00:13.680Z"}%

Tag creation and assignment can be done in separate workspaces.

Create and assign interface tag

curl

1. Create workspace

curl -sS -kX POST --header 'Accept: application/json' -b access_token=`cat token.tok` 'https://192.0.2.100/api/resources/workspace/v1/WorkspaceConfig' -d '{"key":{"workspace_id":"testIntfTag"},"display_name":"testIntfTag","description":"Test interface tag resource APIv2"}'

Result:

{"value":{"key":{"workspaceId":"testIntfTag"},"displayName":"testIntfTag","description":"Test interface tag resource APIv2"},"time":"2021-09-03T00:42:58.736Z"}%

2. Create the tag

curl -sS -kX POST --header 'Accept: application/json' -b access_token=`cat token.tok` 'https://192.0.2.100/api/resources/tag/v2/TagConfig' -d '{"key":{"workspace_id": "testIntfTag", "element_type": "ELEMENT_TYPE_INTERFACE", "label":"intfType", "value":"uplink}}'

Result:

{"value":{"key":{"workspaceId":"testIntfTag","elementType":"ELEMENT_TYPE_INTERFACE","label":"intfType","value":"uplink"}},"time":"2021-09-03T00:44:18.369201627Z"}%

3. Assign the tag

curl -sS -kX POST --header 'Accept: application/json' -b access_token=`cat token.tok` 'https://192.0.2.100/api/resources/tag/v2/TagAssignmentConfig' -d  '{"key": {"workspaceId": "testIntfTag", "elementType": "ELEMENT_TYPE_INTERFACE", "label": "intfType", "value": "uplink", "deviceId": "4B0C688DBE67D1AC9572445DCDB552F9", "interfaceId":"Ethernet1"},"remove": false}'

4. Start the build

curl -sS -kX POST --header 'Accept: application/json' -b access_token=`cat token.tok` 'https://192.0.2.100/api/resources/workspace/v1/WorkspaceConfig' -d '{"key":{"workspace_id":"testIntfTag"},"request":"REQUEST_START_BUILD","request_params":{"request_id":"b1"}}'

Result:

{"value":{"key":{"workspaceId":"testIntfTag"},"request":"REQUEST_START_BUILD","requestParams":{"requestId":"b1"}},"time":"2021-09-03T01:36:15.683Z"}%

5. Verify the build status

curl -sS -kX GET --header 'Accept: application/json' -b access_token=`cat token.tok` 'https://192.0.2.100/api/resources/workspace/v1/WorkspaceBuild?key.workspaceId=testIntfTag&key.buildId=b1'

Result:

{'value': {'key': {'workspaceId': 'testIntfTag', 'buildId': 'b1'}, 'state': 'BUILD_STATE_SUCCESS', 'buildResults': {'values': {}}}, 'time': '2021-09-03T01:36:24.116Z'}

6. Submit the workspace

curl -sS -kX POST --header 'Accept: application/json' -b access_token=`cat token.tok` 'https://192.0.2.100/api/resources/workspace/v1/WorkspaceConfig' -d '{"key":{"workspace_id":"testIntfTag"},"request":"REQUEST_SUBMIT","request_params":{"request_id":"s1"}}'

Result:

{"value":{"key":{"workspaceId":"testIntfTag"},"request":"REQUEST_SUBMIT","requestParams":{"requestId":"s1"}},"time":"2021-09-02T18:00:13.680Z"}%

Tag creation and assignment can be done in separate workspaces.

Unassign a device or interface tag

curl

1. Create workspace

curl -sS -kX POST --header 'Accept: application/json' -b access_token=`cat token.tok` 'https://192.0.2.100/api/resources/workspace/v1/WorkspaceConfig' -d '{"key":{"workspace_id":"deleteTag"},"display_name":"deleteTag","description":"Test interface tag deletion resource APIv2"}'

2.2. Unassign an interface tag

curl -sS -kX POST --header 'Accept: application/json' -b access_token=`cat token.tok` 'https://192.0.2.100/api/resources/tag/v2/TagAssignmentConfig' -d  '{"key": {"workspaceId": "deleteTag", "elementType": "ELEMENT_TYPE_INTERFACE", "label": "intfType", "value": "uplink", "deviceId": "4B0C688DBE67D1AC9572445DCDB552F9", "interfaceId":"Ethernet1"},"remove": true}'

2.2. Unassign a device tag

curl -sS -kX POST --header 'Accept: application/json' -b access_token=`cat token.tok` 'https://192.0.2.100/api/resources/tag/v2/TagAssignmentConfig' -d  '{"key": {"workspaceId": "deleteTag", "elementType": "ELEMENT_TYPE_INTERFACE", "label": "location", "value": "Dublin", "deviceId": "4B0C688DBE67D1AC9572445DCDB552F9"},"remove": true}'

3. Start the build

curl -sS -kX POST --header 'Accept: application/json' -b access_token=`cat token.tok` 'https://192.0.2.100/api/resources/workspace/v1/WorkspaceConfig' -d '{"key":{"workspace_id":"deleteTag"},"request":"REQUEST_START_BUILD","request_params":{"request_id":"b1"}}'

4. Verify the build status

curl -sS -kX GET --header 'Accept: application/json' -b access_token=`cat token.tok` 'https://192.0.2.100/api/resources/workspace/v1/WorkspaceBuild?key.workspaceId=deleteTag&key.buildId=b1'

5. Submit the workspace

curl -sS -kX POST --header 'Accept: application/json' -b access_token=`cat token.tok` 'https://192.0.2.100/api/resources/workspace/v1/WorkspaceConfig' -d '{"key":{"workspace_id":"deleteTag"},"request":"REQUEST_SUBMIT","request_params":{"request_id":"s1"}}'

Remove an existing device/interface tag

curl

1. Create workspace

curl -sS -kX POST --header 'Accept: application/json' -b access_token=`cat token.tok` 'https://192.0.2.100/api/resources/workspace/v1/WorkspaceConfig' -d '{"key":{"workspace_id":"deleteTag"},"display_name":"deleteTag","description":"Test tag deletion"}'

2.1. Delete an interface tag

curl -sS -kX POST --header 'Accept: application/json' -b access_token=`cat token.tok` 'https://192.0.2.100/api/resources/tag/v2/TagConfig' -d '{"key":{"workspace_id": "deleteTag", "element_type": "ELEMENT_TYPE_INTERFACE", "label":"intfType", "value":"downlink"}, "remove": true}'

2.2. Delete a device tag

curl -sS -kX POST --header 'Accept: application/json' -b access_token=`cat token.tok` 'https://192.0.2.100/api/resources/tag/v2/TagConfig' -d '{"key":{"workspace_id": "deleteTag", "element_type": "ELEMENT_TYPE_DEVICE", "label":"location", "value":"Dublin"}, "remove": true}'

3. Start the build

curl -sS -kX POST --header 'Accept: application/json' -b access_token=`cat token.tok` 'https://192.0.2.100/api/resources/workspace/v1/WorkspaceConfig' -d '{"key":{"workspace_id":"deleteTag"},"request":"REQUEST_START_BUILD","request_params":{"request_id":"b1"}}'

4. Verify the build status

curl -sS -kX GET --header 'Accept: application/json' -b access_token=`cat token.tok` 'https://192.0.2.100/api/resources/workspace/v1/WorkspaceBuild?key.workspaceId=deleteTag&key.buildId=b1'

5. Submit the workspace

curl -sS -kX POST --header 'Accept: application/json' -b access_token=`cat token.tok` 'https://192.0.2.100/api/resources/workspace/v1/WorkspaceConfig' -d '{"key":{"workspace_id":"deleteTag"},"request":"REQUEST_SUBMIT","request_params":{"request_id":"s1"}}'

Show all tags edits in a workspace

curl

curl -sS -kX POST --header 'Accept: application/json' -b access_token=`cat token.tok` 'https://192.0.2.100/api/resources/tag/v2/TagConfig/all' -d '{"partialEqFilter": [{"key":{"workspace_id": "test1337"}}]}'

Result:

{"result":{"value":{"key":{"workspaceId":"test1337","elementType":"ELEMENT_TYPE_INTERFACE","label":"intfType","value":"servers"},"remove":false},"time":"2021-09-03T22:21:08.546104408Z","type":"INITIAL"}}

Show all tag assignment edits in a workspace

curl

curl -sS -kX POST --header 'Accept: application/json' -b access_token=`cat token.tok` 'https://192.0.2.100/api/resources/tag/v2/TagAssignmentConfig/all' -d '{"partialEqFilter": [{"key":{"workspace_id": "test1337"}}]}'

Result:

{"result":{"value":{"key":{"workspaceId":"test1337","elementType":"ELEMENT_TYPE_INTERFACE","label":"intfType","value":"uplink","deviceId":"4B0C688DBE67D1AC9572445DCDB552F9","interfaceId":"Ethernet1"},"remove":false},"time":"2021-09-03T21:50:06.187034368Z","type":"INITIAL"}}
{"result":{"value":{"key":{"workspaceId":"test1337","elementType":"ELEMENT_TYPE_INTERFACE","label":"intfType","value":"uplink","deviceId":"4B0C688DBE67D1AC9572445DCDB552F9","interfaceId":"Ethernet2"},"remove":false},"time":"2021-09-03T21:50:06.315113790Z","type":"INITIAL"}}

Leaf-spine topology tagging example

1. Create Workspace

curl -sS -kX POST --header 'Accept: application/json' -b access_token=`cat token.tok` 'https://192.0.2.100/api/resources/workspace/v1/WorkspaceConfig' -d '{"key":{"workspace_id":"AVD-lab"},"display_name":"AVD-lab","description":"Set up topology tags"}'

2. Create tags

curl -sS -kX POST --header 'Accept: application/json' -b access_token=`cat token.tok` 'https://192.0.2.100/api/resources/tag/v2/TagConfig' -d '{"key":{"workspace_id": "AVD-lab", "element_type": "ELEMENT_TYPE_DEVICE", "label":"topology_hint_pod", "value":"avd-pod1"}}'

curl -sS -kX POST --header 'Accept: application/json' -b access_token=`cat token.tok` 'https://192.0.2.100/api/resources/tag/v2/TagConfig' -d '{"key":{"workspace_id": "AVD-lab", "element_type": "ELEMENT_TYPE_DEVICE", "label":"topology_hint_datacenter", "value":"avd-dc1"}}'

curl -sS -kX POST --header 'Accept: application/json' -b access_token=`cat token.tok` 'https://192.0.2.100/api/resources/tag/v2/TagConfig' -d '{"key":{"workspace_id": "AVD-lab", "element_type": "ELEMENT_TYPE_DEVICE", "label":"topology_hint_rack", "value":"avd-leafs1"}}'

curl -sS -kX POST --header 'Accept: application/json' -b access_token=`cat token.tok` 'https://192.0.2.100/api/resources/tag/v2/TagConfig' -d '{"key":{"workspace_id": "AVD-lab", "element_type": "ELEMENT_TYPE_DEVICE", "label":"topology_hint_rack", "value":"avd-leafs2"}}'

curl -sS -kX POST --header 'Accept: application/json' -b access_token=`cat token.tok` 'https://192.0.2.100/api/resources/tag/v2/TagConfig' -d '{"key":{"workspace_id": "AVD-lab", "element_type": "ELEMENT_TYPE_DEVICE", "label":"topology_hint_rack", "value":"avd-spines"}}'

3. Assign tags

curl -sS -kX POST --header 'Accept: application/json' -b access_token=`cat token.tok` 'https://192.0.2.100/api/resources/tag/v2/TagAssignmentConfig' -d  '{"key": {"workspaceId": "AVD-lab", "elementType": "ELEMENT_TYPE_DEVICE", "label": "topology_hint_datacenter", "value": "avd-dc1", "deviceId": "BAD032986065E8DC14CBB6472EC314A6"},"remove": false}'

curl -sS -kX POST --header 'Accept: application/json' -b access_token=`cat token.tok` 'https://192.0.2.100/api/resources/tag/v2/TagAssignmentConfig' -d  '{"key": {"workspaceId": "AVD-lab", "elementType": "ELEMENT_TYPE_DEVICE", "label": "topology_hint_datacenter", "value": "avd-dc1", "deviceId": "0123F2E4462997EB155B7C50EC148767"},"remove": false}'

curl -sS -kX POST --header 'Accept: application/json' -b access_token=`cat token.tok` 'https://192.0.2.100/api/resources/tag/v2/TagAssignmentConfig' -d  '{"key": {"workspaceId": "AVD-lab", "elementType": "ELEMENT_TYPE_DEVICE", "label": "topology_hint_datacenter", "value": "avd-dc1", "deviceId": "8520AF39790A4EC959550166DC5DEADE"},"remove": false}'

curl -sS -kX POST --header 'Accept: application/json' -b access_token=`cat token.tok` 'https://192.0.2.100/api/resources/tag/v2/TagAssignmentConfig' -d  '{"key": {"workspaceId": "AVD-lab", "elementType": "ELEMENT_TYPE_DEVICE", "label": "topology_hint_datacenter", "value": "avd-dc1", "deviceId": "6323DA7D2B542B5D09630F87351BEA41"},"remove": false}'

curl -sS -kX POST --header 'Accept: application/json' -b access_token=`cat token.tok` 'https://192.0.2.100/api/resources/tag/v2/TagAssignmentConfig' -d  '{"key": {"workspaceId": "AVD-lab", "elementType": "ELEMENT_TYPE_DEVICE", "label": "topology_hint_datacenter", "value": "avd-dc1", "deviceId": "CD0EADBEEA126915EA78E0FB4DC776CA"},"remove": false}'

curl -sS -kX POST --header 'Accept: application/json' -b access_token=`cat token.tok` 'https://192.0.2.100/api/resources/tag/v2/TagAssignmentConfig' -d  '{"key": {"workspaceId": "AVD-lab", "elementType": "ELEMENT_TYPE_DEVICE", "label": "topology_hint_datacenter", "value": "avd-dc1", "deviceId": "2568DB4A33177968A78C4FD5A8232159"},"remove": false}'

curl -sS -kX POST --header 'Accept: application/json' -b access_token=`cat token.tok` 'https://192.0.2.100/api/resources/tag/v2/TagAssignmentConfig' -d  '{"key": {"workspaceId": "AVD-lab", "elementType": "ELEMENT_TYPE_DEVICE", "label": "topology_hint_pod", "value": "avd-pod1", "deviceId": "BAD032986065E8DC14CBB6472EC314A6"},"remove": false}'

curl -sS -kX POST --header 'Accept: application/json' -b access_token=`cat token.tok` 'https://192.0.2.100/api/resources/tag/v2/TagAssignmentConfig' -d  '{"key": {"workspaceId": "AVD-lab", "elementType": "ELEMENT_TYPE_DEVICE", "label": "topology_hint_pod", "value": "avd-pod1", "deviceId": "0123F2E4462997EB155B7C50EC148767"},"remove": false}'

curl -sS -kX POST --header 'Accept: application/json' -b access_token=`cat token.tok` 'https://192.0.2.100/api/resources/tag/v2/TagAssignmentConfig' -d  '{"key": {"workspaceId": "AVD-lab", "elementType": "ELEMENT_TYPE_DEVICE", "label": "topology_hint_pod", "value": "avd-pod1", "deviceId": "8520AF39790A4EC959550166DC5DEADE"},"remove": false}'

curl -sS -kX POST --header 'Accept: application/json' -b access_token=`cat token.tok` 'https://192.0.2.100/api/resources/tag/v2/TagAssignmentConfig' -d  '{"key": {"workspaceId": "AVD-lab", "elementType": "ELEMENT_TYPE_DEVICE", "label": "topology_hint_pod", "value": "avd-pod1", "deviceId": "6323DA7D2B542B5D09630F87351BEA41"},"remove": false}'

curl -sS -kX POST --header 'Accept: application/json' -b access_token=`cat token.tok` 'https://192.0.2.100/api/resources/tag/v2/TagAssignmentConfig' -d  '{"key": {"workspaceId": "AVD-lab", "elementType": "ELEMENT_TYPE_DEVICE", "label": "topology_hint_pod", "value": "avd-pod1", "deviceId": "CD0EADBEEA126915EA78E0FB4DC776CA"},"remove": false}'

curl -sS -kX POST --header 'Accept: application/json' -b access_token=`cat token.tok` 'https://192.0.2.100/api/resources/tag/v2/TagAssignmentConfig' -d  '{"key": {"workspaceId": "AVD-lab", "elementType": "ELEMENT_TYPE_DEVICE", "label": "topology_hint_pod", "value": "avd-pod1", "deviceId": "2568DB4A33177968A78C4FD5A8232159"},"remove": false}'

curl -sS -kX POST --header 'Accept: application/json' -b access_token=`cat token.tok` 'https://192.0.2.100/api/resources/tag/v2/TagAssignmentConfig' -d  '{"key": {"workspaceId": "AVD-lab", "elementType": "ELEMENT_TYPE_DEVICE", "label": "topology_hint_rack", "value": "avd-leafs1", "deviceId": "BAD032986065E8DC14CBB6472EC314A6"},"remove": false}'

curl -sS -kX POST --header 'Accept: application/json' -b access_token=`cat token.tok` 'https://192.0.2.100/api/resources/tag/v2/TagAssignmentConfig' -d  '{"key": {"workspaceId": "AVD-lab", "elementType": "ELEMENT_TYPE_DEVICE", "label": "topology_hint_rack", "value": "avd-leafs1", "deviceId": "0123F2E4462997EB155B7C50EC148767"},"remove": false}'

curl -sS -kX POST --header 'Accept: application/json' -b access_token=`cat token.tok` 'https://192.0.2.100/api/resources/tag/v2/TagAssignmentConfig' -d  '{"key": {"workspaceId": "AVD-lab", "elementType": "ELEMENT_TYPE_DEVICE", "label": "topology_hint_rack", "value": "avd-leafs2", "deviceId": "8520AF39790A4EC959550166DC5DEADE"},"remove": false}'

curl -sS -kX POST --header 'Accept: application/json' -b access_token=`cat token.tok` 'https://192.0.2.100/api/resources/tag/v2/TagAssignmentConfig' -d  '{"key": {"workspaceId": "AVD-lab", "elementType": "ELEMENT_TYPE_DEVICE", "label": "topology_hint_rack", "value": "avd-leafs2", "deviceId": "6323DA7D2B542B5D09630F87351BEA41"},"remove": false}'

curl -sS -kX POST --header 'Accept: application/json' -b access_token=`cat token.tok` 'https://192.0.2.100/api/resources/tag/v2/TagAssignmentConfig' -d  '{"key": {"workspaceId": "AVD-lab", "elementType": "ELEMENT_TYPE_DEVICE", "label": "topology_hint_rack", "value": "avd-spines", "deviceId": "CD0EADBEEA126915EA78E0FB4DC776CA"},"remove": false}'

curl -sS -kX POST --header 'Accept: application/json' -b access_token=`cat token.tok` 'https://192.0.2.100/api/resources/tag/v2/TagAssignmentConfig' -d  '{"key": {"workspaceId": "AVD-lab", "elementType": "ELEMENT_TYPE_DEVICE", "label": "topology_hint_rack", "value": "avd-spines", "deviceId": "2568DB4A33177968A78C4FD5A8232159"},"remove": false}'

curl -sS -kX POST --header 'Accept: application/json' -b access_token=`cat token.tok` 'https://192.0.2.100/api/resources/tag/v2/TagAssignmentConfig' -d  '{"key": {"workspaceId": "AVD-lab", "elementType": "ELEMENT_TYPE_DEVICE", "label": "topology_hint_type", "value": "leaf", "deviceId": "BAD032986065E8DC14CBB6472EC314A6"},"remove": false}'

curl -sS -kX POST --header 'Accept: application/json' -b access_token=`cat token.tok` 'https://192.0.2.100/api/resources/tag/v2/TagAssignmentConfig' -d  '{"key": {"workspaceId": "AVD-lab", "elementType": "ELEMENT_TYPE_DEVICE", "label": "topology_hint_type", "value": "leaf", "deviceId": "0123F2E4462997EB155B7C50EC148767"},"remove": false}'

curl -sS -kX POST --header 'Accept: application/json' -b access_token=`cat token.tok` 'https://192.0.2.100/api/resources/tag/v2/TagAssignmentConfig' -d  '{"key": {"workspaceId": "AVD-lab", "elementType": "ELEMENT_TYPE_DEVICE", "label": "topology_hint_type", "value": "leaf", "deviceId": "8520AF39790A4EC959550166DC5DEADE"},"remove": false}'

curl -sS -kX POST --header 'Accept: application/json' -b access_token=`cat token.tok` 'https://192.0.2.100/api/resources/tag/v2/TagAssignmentConfig' -d  '{"key": {"workspaceId": "AVD-lab", "elementType": "ELEMENT_TYPE_DEVICE", "label": "topology_hint_type", "value": "leaf", "deviceId": "6323DA7D2B542B5D09630F87351BEA41"},"remove": false}'

curl -sS -kX POST --header 'Accept: application/json' -b access_token=`cat token.tok` 'https://192.0.2.100/api/resources/tag/v2/TagAssignmentConfig' -d  '{"key": {"workspaceId": "AVD-lab", "elementType": "ELEMENT_TYPE_DEVICE", "label": "topology_hint_type", "value": "spine", "deviceId": "CD0EADBEEA126915EA78E0FB4DC776CA"},"remove": false}'

curl -sS -kX POST --header 'Accept: application/json' -b access_token=`cat token.tok` 'https://192.0.2.100/api/resources/tag/v2/TagAssignmentConfig' -d  '{"key": {"workspaceId": "AVD-lab", "elementType": "ELEMENT_TYPE_DEVICE", "label": "topology_hint_type", "value": "spine", "deviceId": "2568DB4A33177968A78C4FD5A8232159"},"remove": false}'

4. Start Build

curl -sS -kX POST --header 'Accept: application/json' -b access_token=`cat token.tok` 'https://192.0.2.100/api/resources/workspace/v1/WorkspaceConfig' -d '{"key":{"workspace_id":"AVD-lab"},"request":"REQUEST_START_BUILD","request_params":{"request_id":"b1"}}'

5. Submit workspace

curl -sS -kX POST --header 'Accept: application/json' -b access_token=`cat token.tok` 'https://192.0.2.100/api/resources/workspace/v1/WorkspaceConfig' -d '{"key":{"workspace_id":"AVD-lab"},"request":"REQUEST_SUBMIT","request_params":{"request_id":"s1"}}'

Result:

topology
